Filtration of effluents
Conveying / Lifting
Conveying
Filtres Monnet offers you its range of conveyors to equip your machine tools: drag, belt or magnetic, depending on your application.
Our products

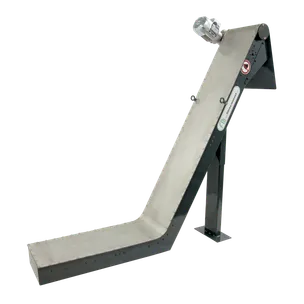

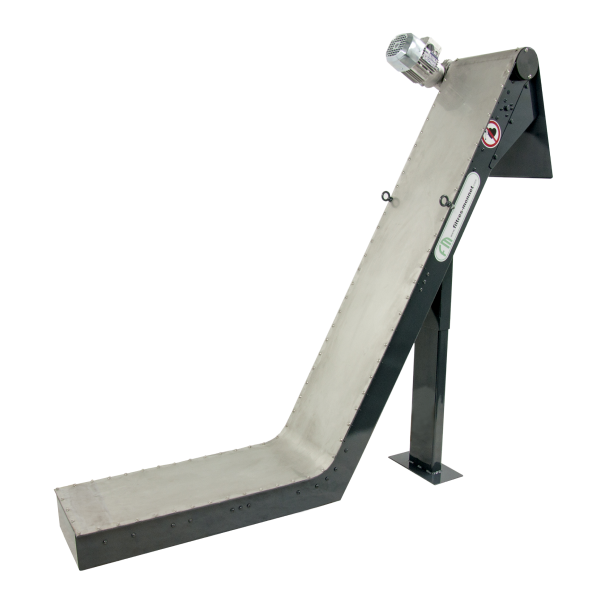

They are generally fitted to machine tools to separate swarf and cutting fluids. Its magnetic power enables it to evacuate large swarf, scrap or parts of widely varying shapes.
Note that they are only compatible with magnetic materials.
Advantages
High power (in gauss)
Low mechanical wear
Compatible with long chips or chips of various shapes

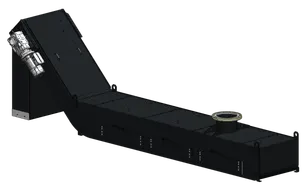

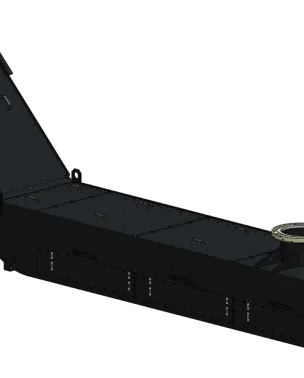

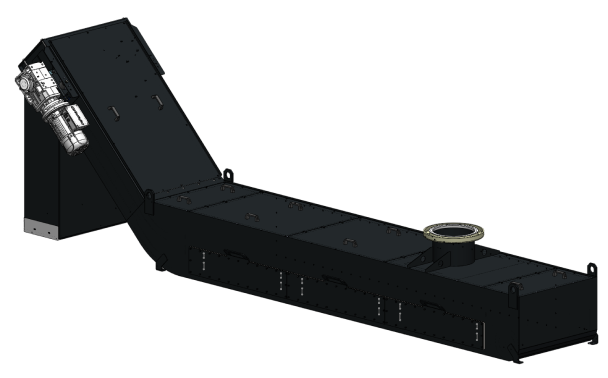

They are generally used on machine tools to extract swarf from the cutting fluid.
They can also be used for pre-filtration in filtration plants, in conjunction with grids.
Advantages
Possibility of integrating a filtering element (fissure grille, drum, etc.)
Made-to-measure dimensions
Works with all types of materials
Options
Pre-filtering grid

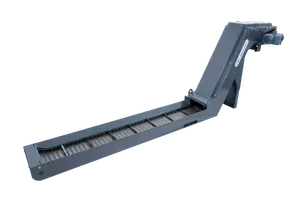

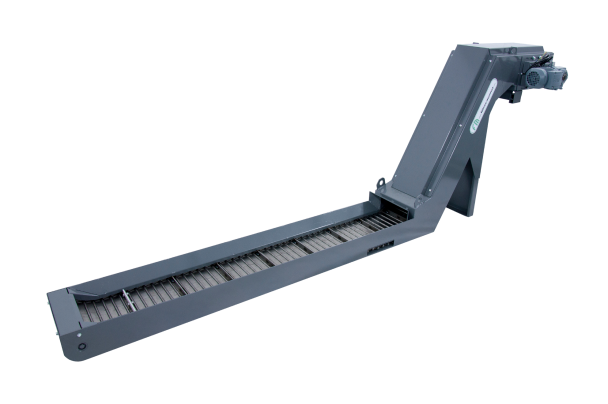

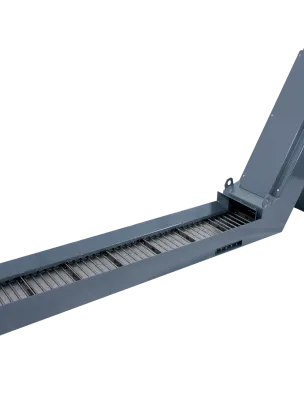

They are generally fitted to machine tools, particularly lathes, to extract swarf from the cutting fluid.
Advantages
Suitable for long chips
Made-to-measure dimensions
Pré-séparation des liquides et copeaux

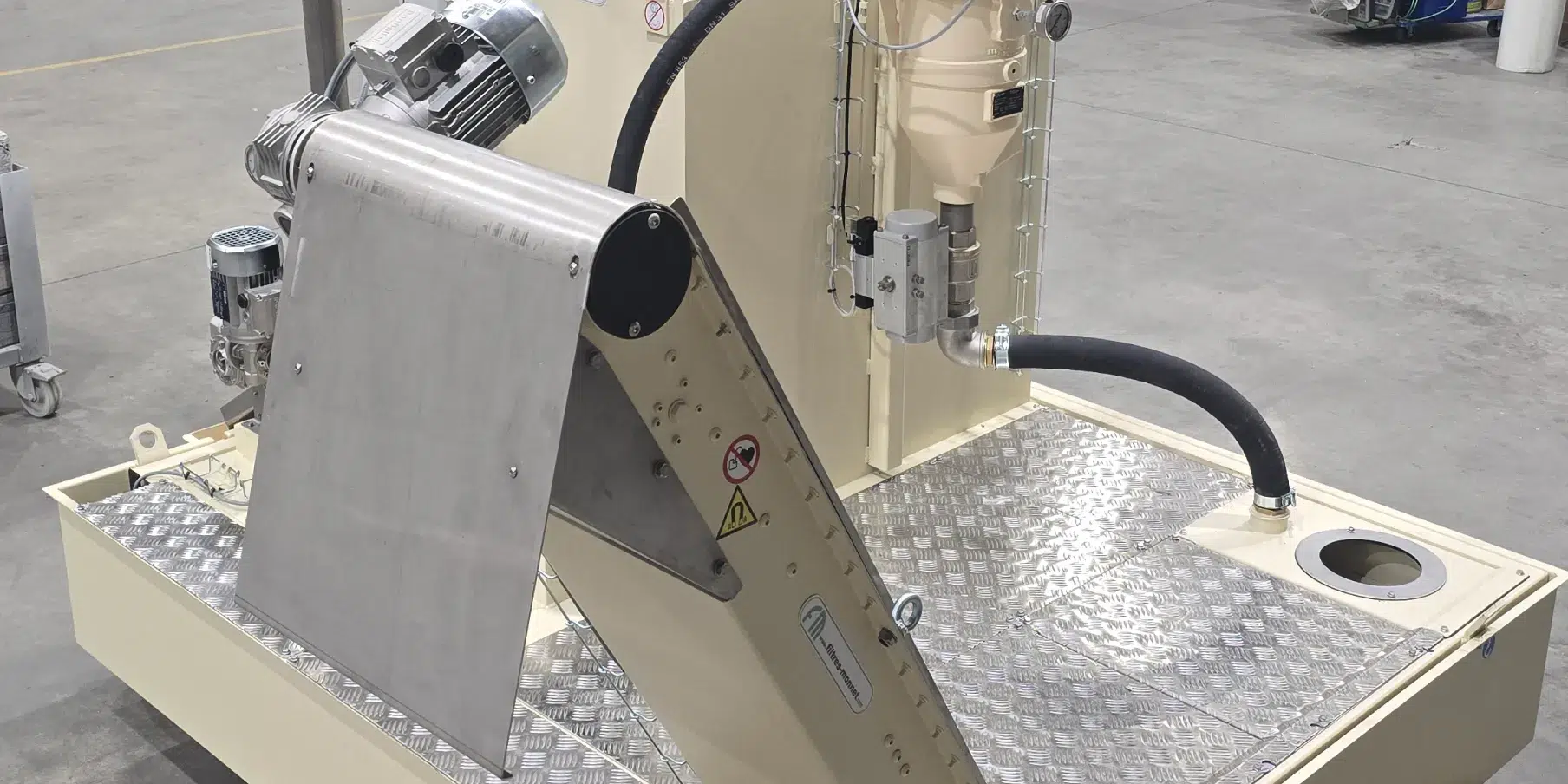

The conveyors collect the liquid and the swarf and provide an initial level of separation, extracting the coarsest loads.
Lifting
The purpose of the lifting system is to suck up the dirty liquid and return it to a centralised effluent treatment network, or to a filtration plant where the effluent cannot flow simply by gravity.
Our products

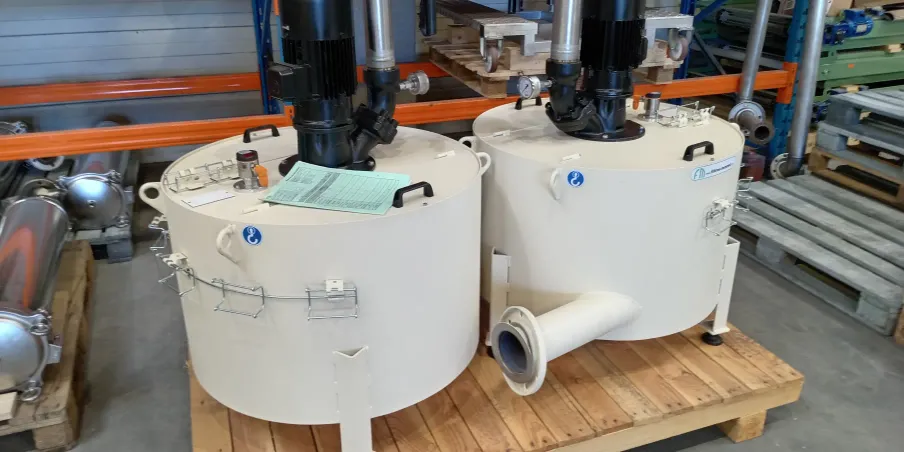

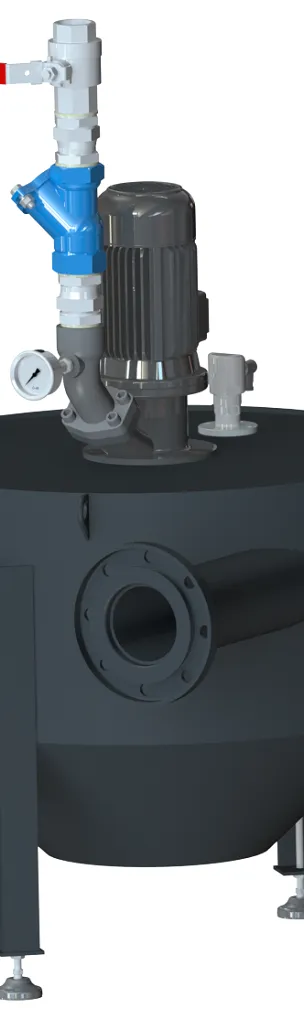

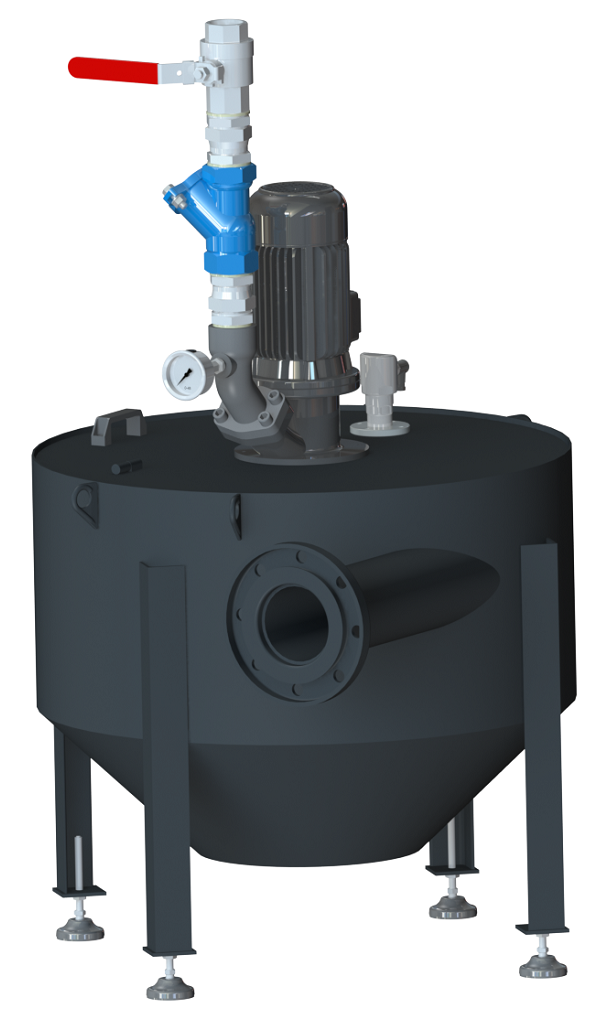

Circular, rectangular or long, lifting stations are generally installed inside or next to the machine tool or process using the effluent, which enters the tank by gravity. The shape will be adapted to the space constraints. The dimensions will be adapted to the volume and flow rate to be treated.
Advantages
Great freedom of location for the filtration unit
Centralised network operation
Ergonomic access with low process height
Longer versions can be used as conveyors
Options
Integrated booster for local control of irrigation flow/pressure

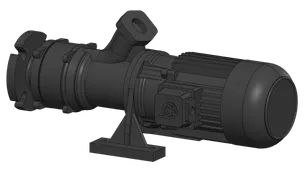

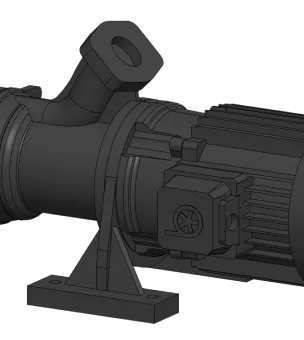

Installed on the lift tank, the choice of pump type will enable a wide variety of liquids, rates and load types to be handled. They can be closed for clean liquids or semi-open for conventional particles or swarf. Fully open versions can be selected, capable of absorbing large pieces by vortex effect, up to the diameter of the pipe.
Characteristics
Flow rates from 0 to 2500 l/min
Power ratings from 0.5 to 20 kW
Applications
Machine tools on a centralised network
Advantages
Centralised network operation
Ergonomic access with low process height
Options
Frequency inverters. By adjusting the pump’s flow rate, it reduces energy consumption by 30 to 50% and improves filtration quality thanks to a more regular flow rate.
Agitators to prevent stagnation and clogging.
Grinders to reduce particle size.
Optimisation du transport des liquides et copeaux
The lifting stations collect the liquid and the chips or fillers and take them to the treatment site. This makes it easier to work with a centralised network, so you only need to manage one treatment centre for a multitude of machines. This solution gives you a great deal of freedom when it comes to setting up your workshop.
Experts at your service
Need filtration? Contact us
