Filtration of effluents
Super filtration
Centrifuges
These systems can trap fine residual partricles and achieve filtration thresholds of up to 3 µm.
Our products

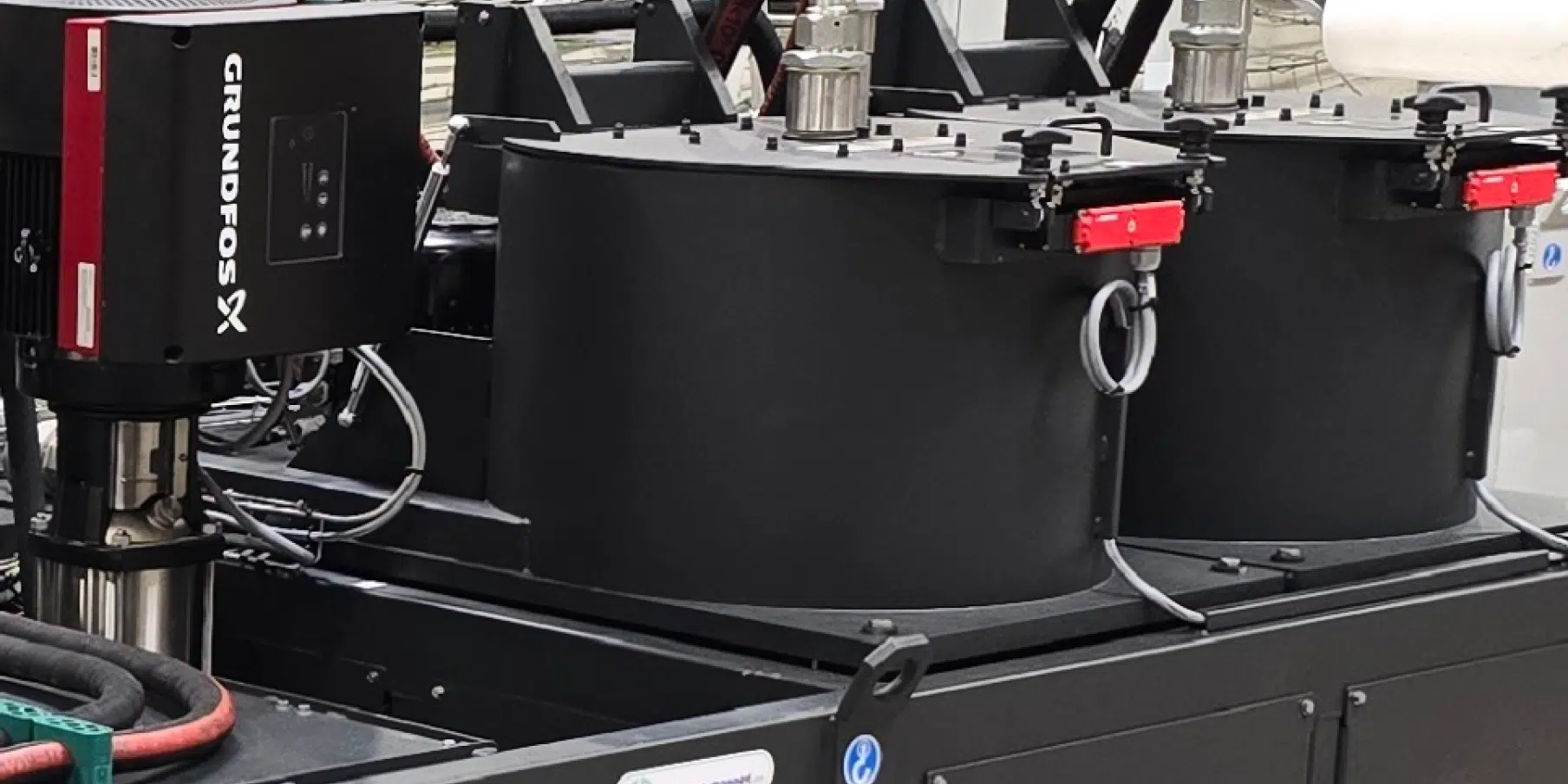

This system accelerates decantation, separating solid particles from a liquid.
Thanks to the centrifugal force exerted, the pollutants are ejected onto the walls of a bowl, which is part of the centrifuge.
Centrifuges with manual or automatic unclogging.
Characteristics
Flow rate from 25 to 220 l/min
Filtration threshold of 3 to 5 µm
Applications
Glass (optics, flat glass, automotive glass)
Metals (carbide, titanium, etc.)
Ceramics
Advantages
Can be integrated into a control unit or used as a stand-alone unit
No consumables
Dry sludge, optimum waste recycling
Small footprint

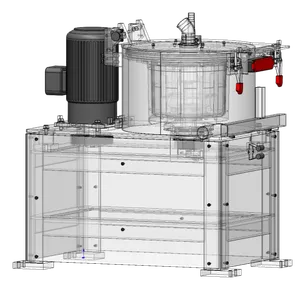

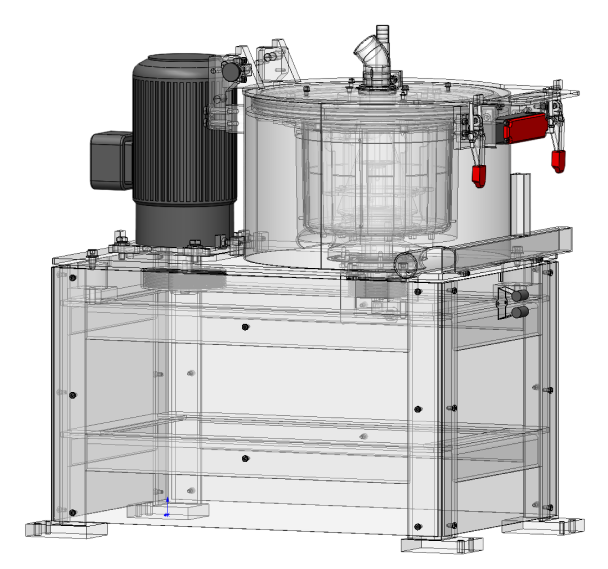

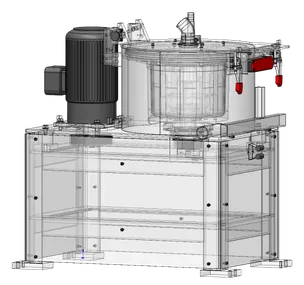

Based on the same principle as the manual version, this version incorporates an automatic emptying and cleaning cycle.
Characteristics
Flow rate from 25 to 220 l/min
Filtration threshold of 3 to 5 µm
Applications

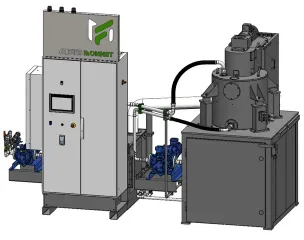

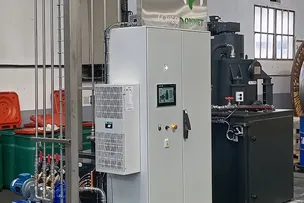

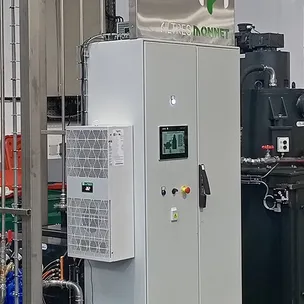

Regeneration of drawing oils
Advantages
No consumables
Automatic
Performance, économie et écologie
Centrifuges enable very high levels of cleanliness to be achieved. Used to regenerate whole oils, they considerably extend the life of these oils. As well as providing a very rapid return on investment, they also help to protect the environment.
Spark plug filters

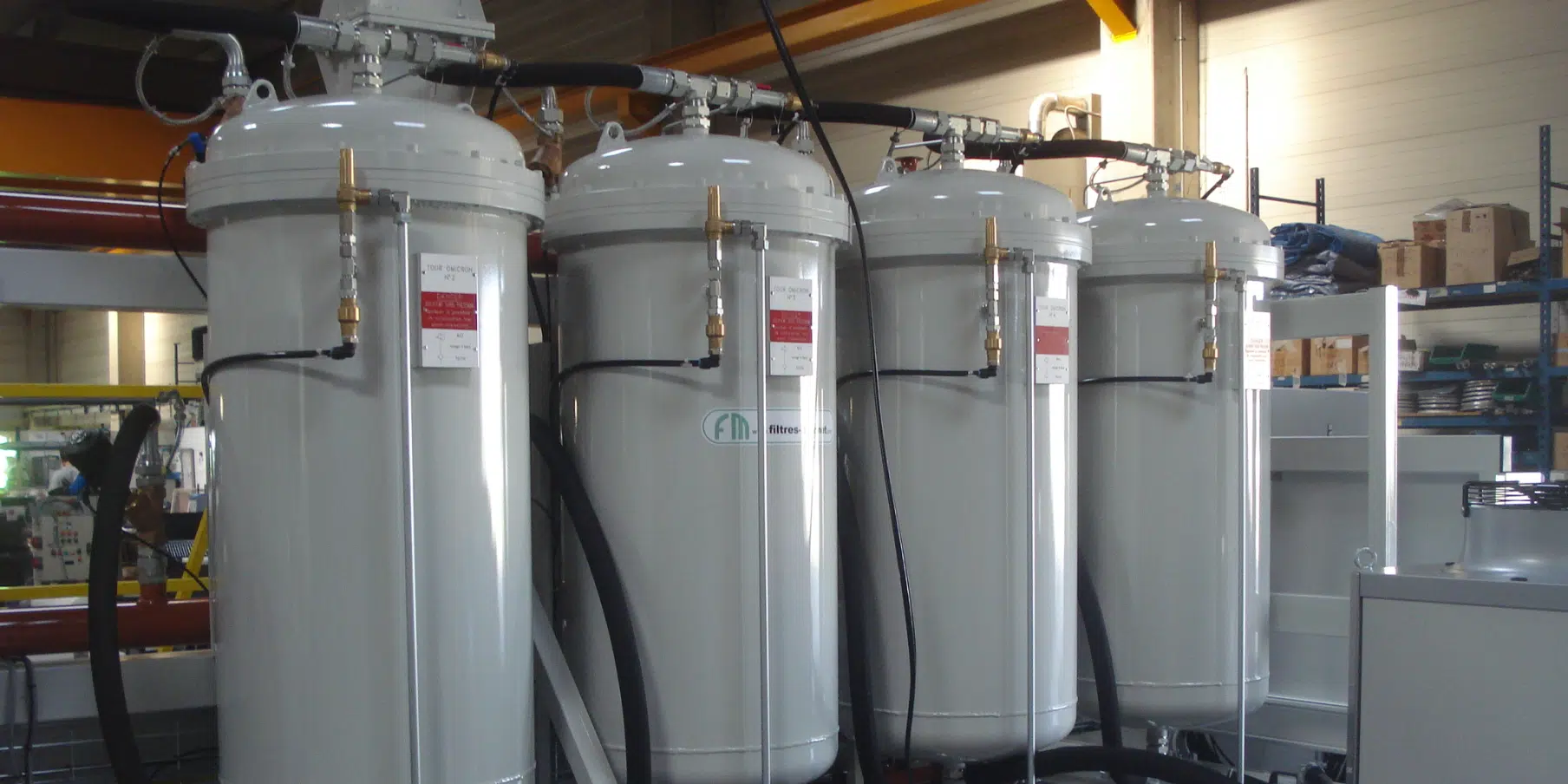

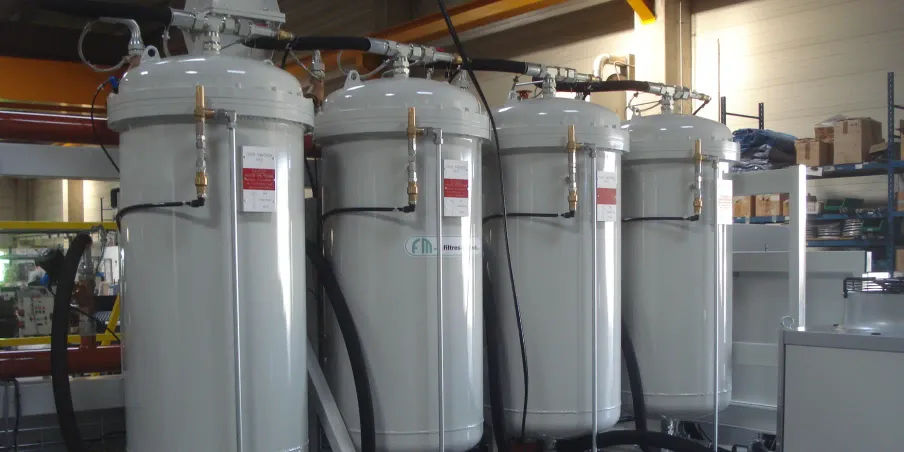

The Omicron fine filtration system is the ideal solution for whole oil filtration in superfinishing processes, particularly when machining materials such as stainless steel, HSS or tungsten carbide.
Our products

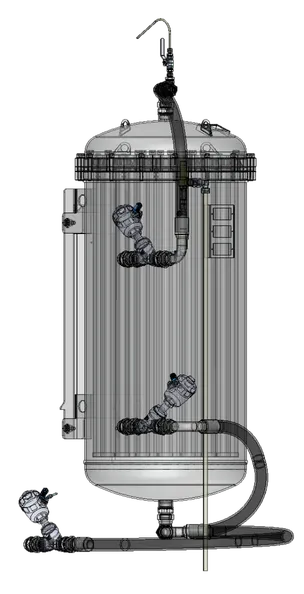

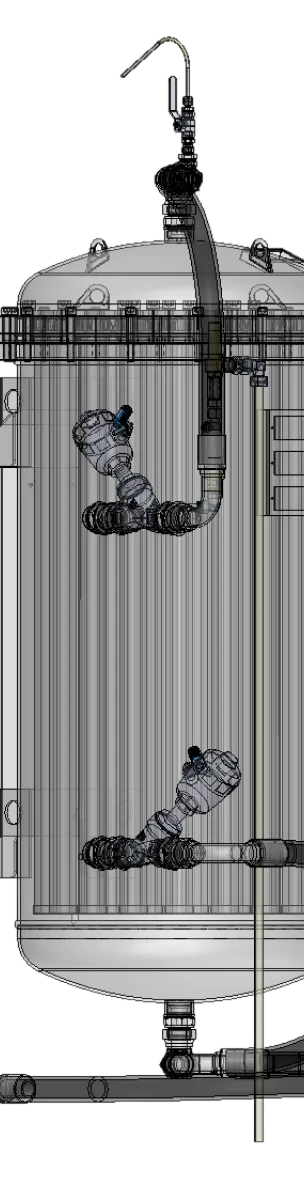

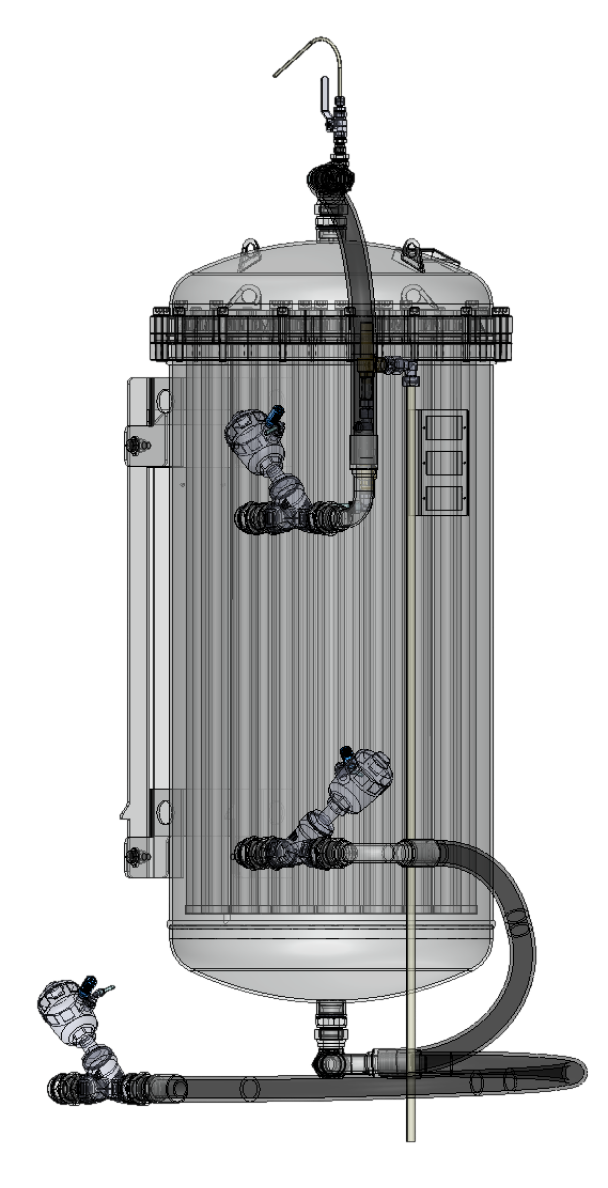

This filtration principle, with self-cleaning 5 µm candles, requires no additives. The candles are regenerated by counter-current injection of compressed air, and the purges are sent to a hydrostatic filter or a bag filter. As an autonomous technology, our Omicron plants require virtually no human intervention, optimising operating costs. The PLC is programmed by our in-house automation specialists, with developments tailored to your specifications.
Characteristics
Flow rate of 200 l/min per filtration tower
Up to 10 turns per unit
Filtration threshold of 5µ
Applications
Sharpening cutting tools
Cutting tool production
Electrical discharge machining
Grinding
Honing
Toilage
Advantages
Fine filtration
Additive-free filtration
Consumable-free filtration
Options
Barrel-mounted versions for continuous operation without stopping for the cleaning cycle
