Filter bags

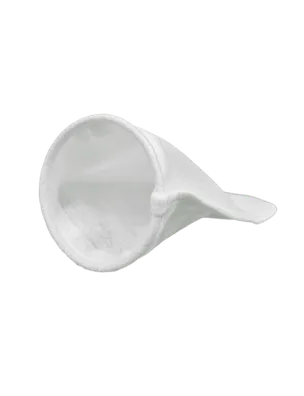

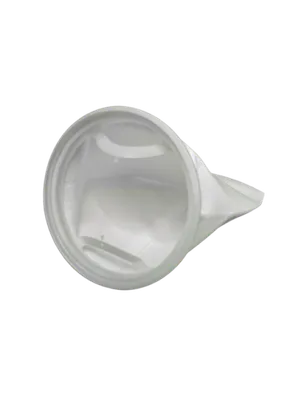

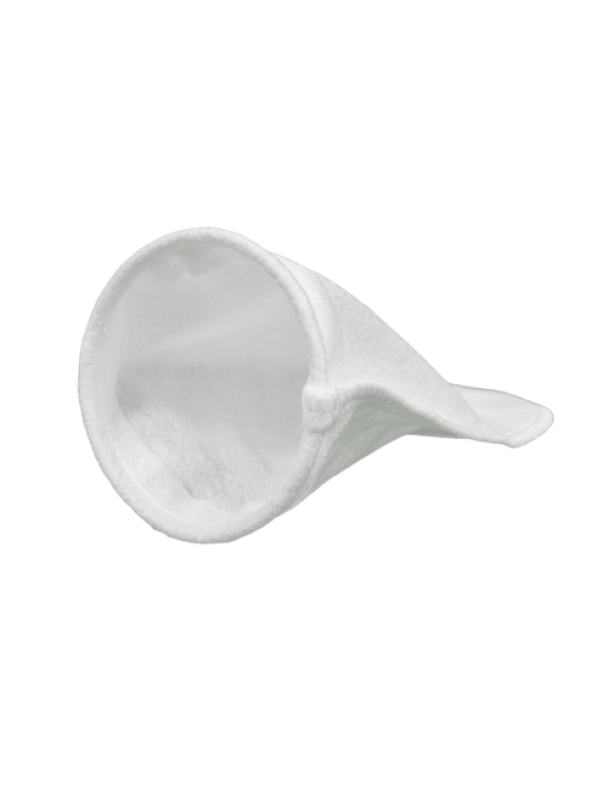

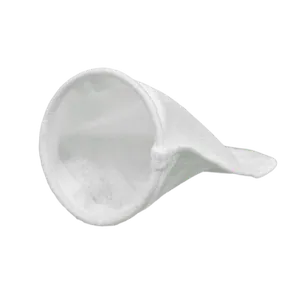

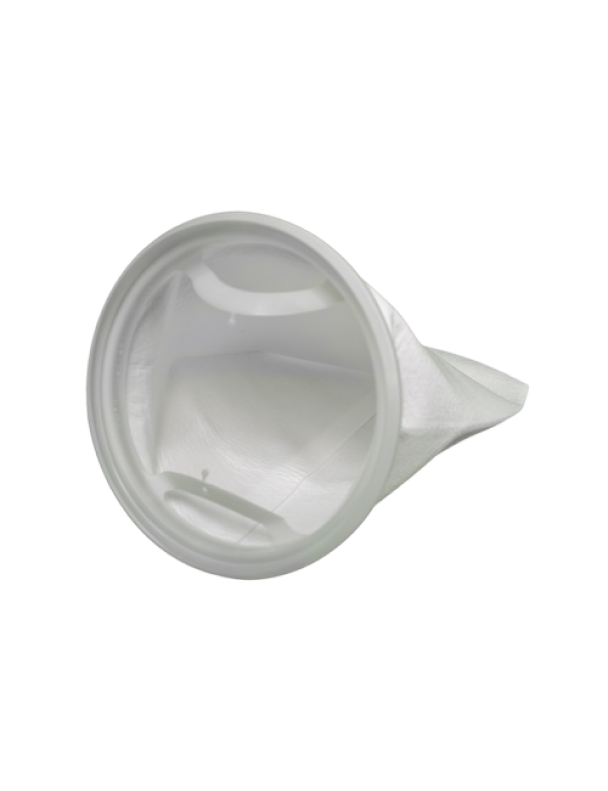

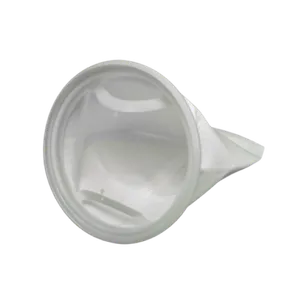

Filtreri presents felt filter bags, commonly known as « socks ». These products are disposable (for a washable solution, see the monofilament bags below).
The bags – or socks – filter particles effectively, providing in-depth filtration.

Filter bags are designed for filtration from the inside out, leaving contaminants inside the bag for easy removal. They are available in several media and are mounted in stainless steel housings.

They are available with different rings:

• Galvanised steel
• Stainless steel
• Polypropylene flange
• Polyester flange

Additional information

• Filtration threshold: 1 µm to 200 µm
• Filtration: 70 to 95
• Maximum operating temperature: 260°C
• Sizes:
  • size 1 : diam 180 x L 430 mm
  • size 2 : diam 180 x L 810 mm
  • size 3 : diam 100 x L 230 mm
  • size 4 : diam 100 x L 380 mm
• Materials:
  • Nylon
  • Polyester
  • Polypropylene
  • PTFE

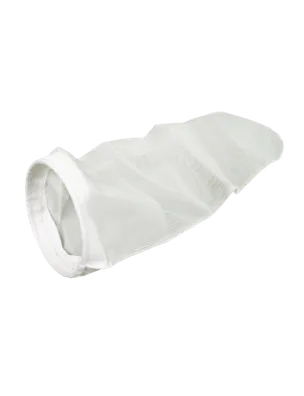

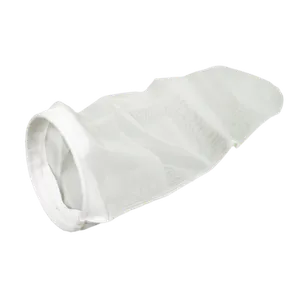

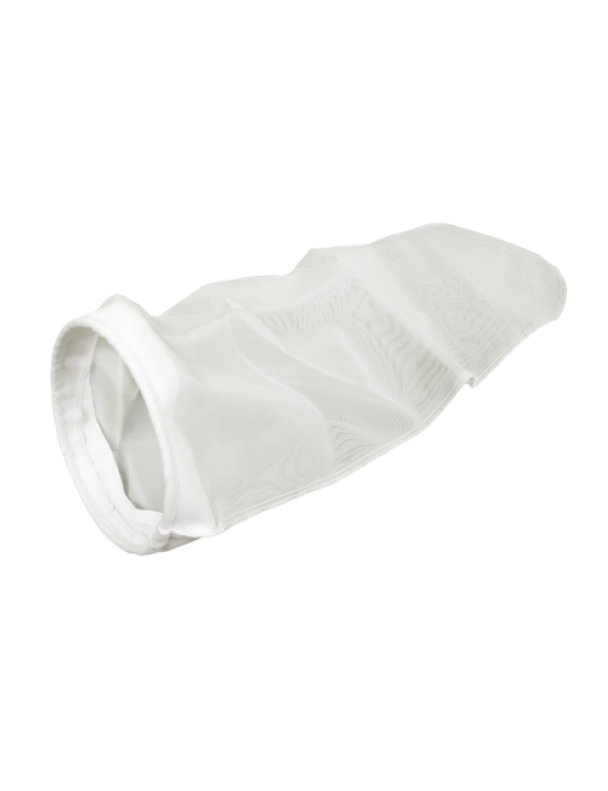

Monofilament bags guarantee effective filtration of particles. Filtration takes place from the inside out via a non-deformable monofilament material, woven according to a specific structure with fusion-welded intersections, for increased strength and an absolute retention rate. These high-performance, washable products are suitable for all fine and coarse filtration applications. These filter bags are designed for surface filtration to retain particles larger than the pore size. They offer a wide range of retention rates. Monofilament bags are mounted in stainless steel housings and are washable.

They are available with different rings:

• Steel
• Stainless steel
• Polypropylene flange

Additional information

• Filtration threshold: 1 µm to 1500 µm
• Maximum operating temperature: 240°C
• Sizes:
  • size 1 : diam 180 x L 430 mm
  • size 2 : diam 180 x L 810 mm
  • size 3 : diam 100 x L 230 mm
  • size 4 : diam 100 x L 380 mm
• Materials :
  • Nylon
  • Polyester
  • Polypropylene
  • Plastic
